5T Single Girder Gantry Crane Price

Basic Info

Model No.: MH, BMH, L, Truss

Product Description

5T Single Girder Gantry Crane Price


Brief Description--Single Girder Gantry Crane

1). Single girder gantry crane are a type of crane built atop a gantry, which is a structure used to straddle an object or workspace. They are also called portal cranes, the "portal" being the empty space straddled by the gantry.

2). Single girder gantry crane often costs less than abridge crane,built to heavy duty Class D specifications, which meet the demands of high duty cycles and multiple shift operation, as well as providing decades of reliable service for all applications.

3). Single girder gantry crane including L type single girder gantry crane,semi gantry crane, box type gantry crane, truss type gantry crane and cantilever styles for indoor or outdoor service. Capacities, spans and heights are virtually unlimited.

Single Girder Gantry Crane

Similar Product--Single Girder Gantry Crane

Single Girder Gantry Crane

Box Type Single Girder Gantry Crane

  • Capacity:5t~20t
  • Span length:3-35m
  • Lifting height: up to 30m
  • Hoist:CD type or MD type
  • Control model:pandent control,remote control
  • Working temperature:-20°C to + 40°C
Single Girder Gantry Crane

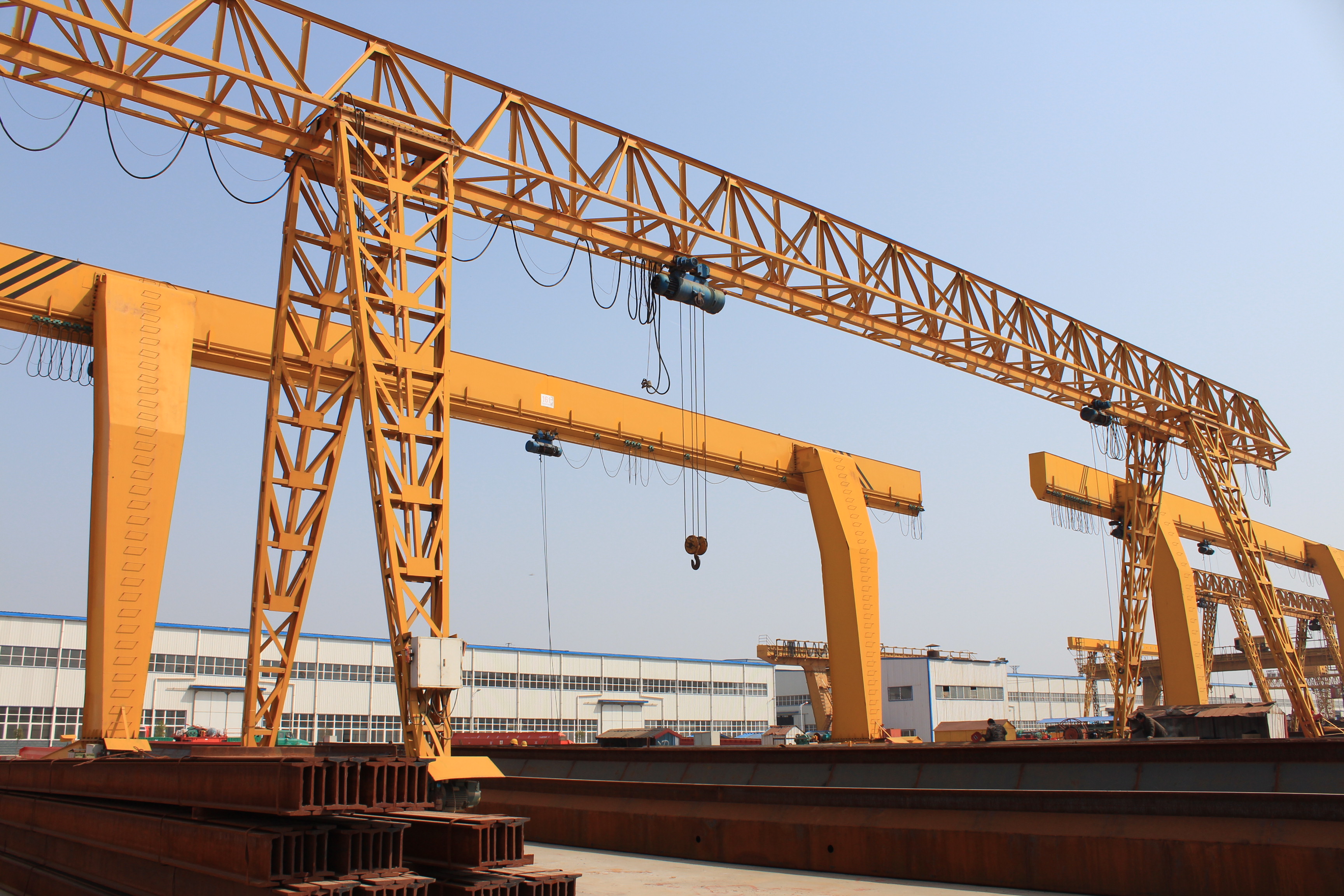

Truss Type Single Girder Gantry Crane

  • Capacity:5t~20t
  • Span length:3-35m
  • Lifting height: up to 30m
  • Hoist:CD type or MD type
  • Control model:pandent control,remote control
  • Working temperature:-20°C to + 40°C

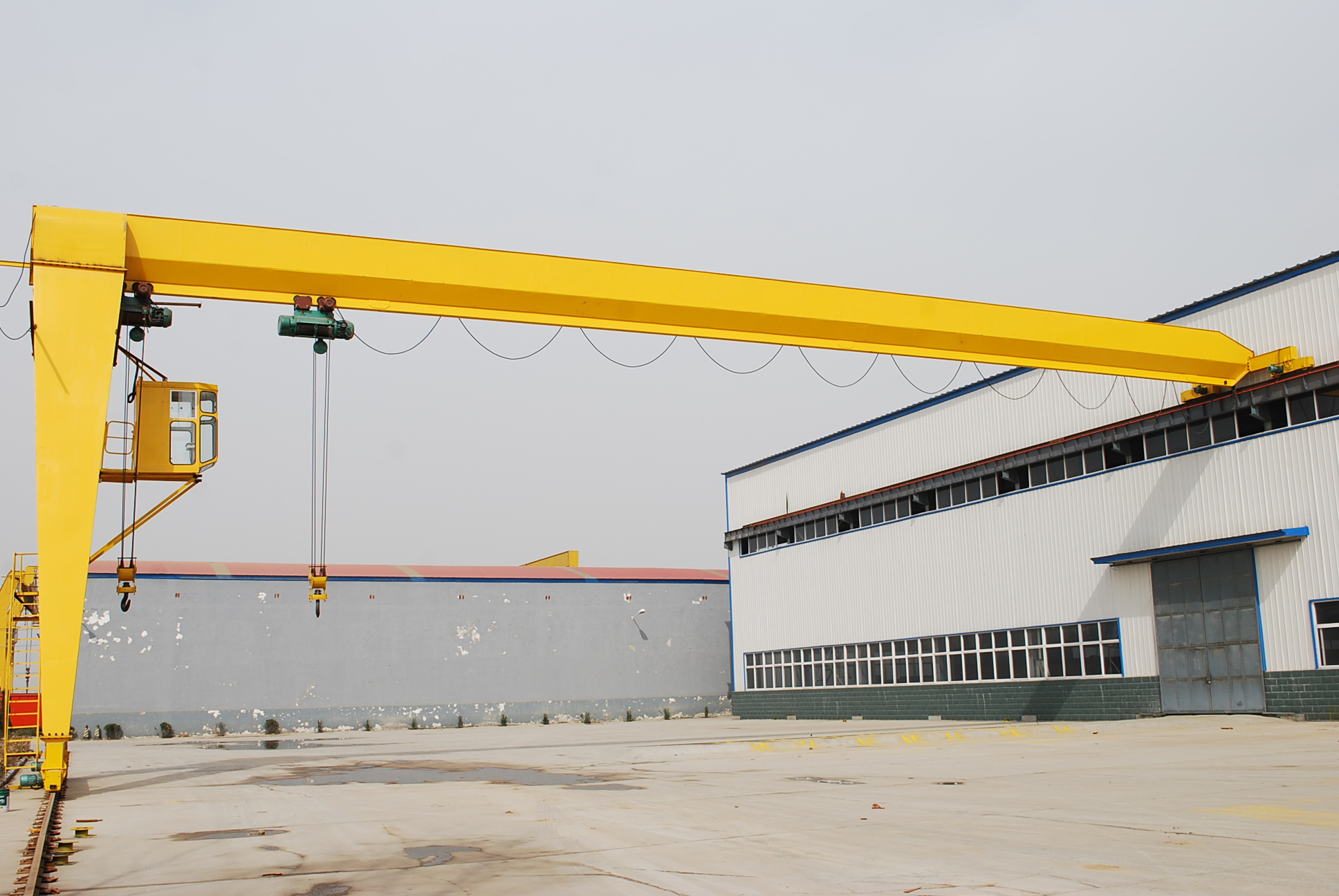

5T Single Girder Gantry Crane

Single Girder Semi Gantry Crane

  • Capacity:2t~10t
  • Span length:10m,12m,16m,20m
  • Lifting height: up to 12m
  • Working temperature:-20°C to + 40°C
  • Semi gantry crane saving the investment and space, with reasonable structure,favorable performance, easy installation, reliable traveling, and convenient maintenance, strong ability of lateral load proof, etc.

5T Single Girder Gantry Crane

L Type Single Girder Gantry Crane

  • Capacity:2t~50t
  • Span length:18m,22m,26m,30m,35m
  • Lifting height: up to 12m
  • Speed:single speed,double speed or equiped with variable frequency motor.
  • Working temperature:-20°C to + 40°C
  • L type gantry crane including L type single girder gantry crane with hook model capacity 2t~10t and L type single girder gantry crane with electric hoist model capacity 2t~50t.

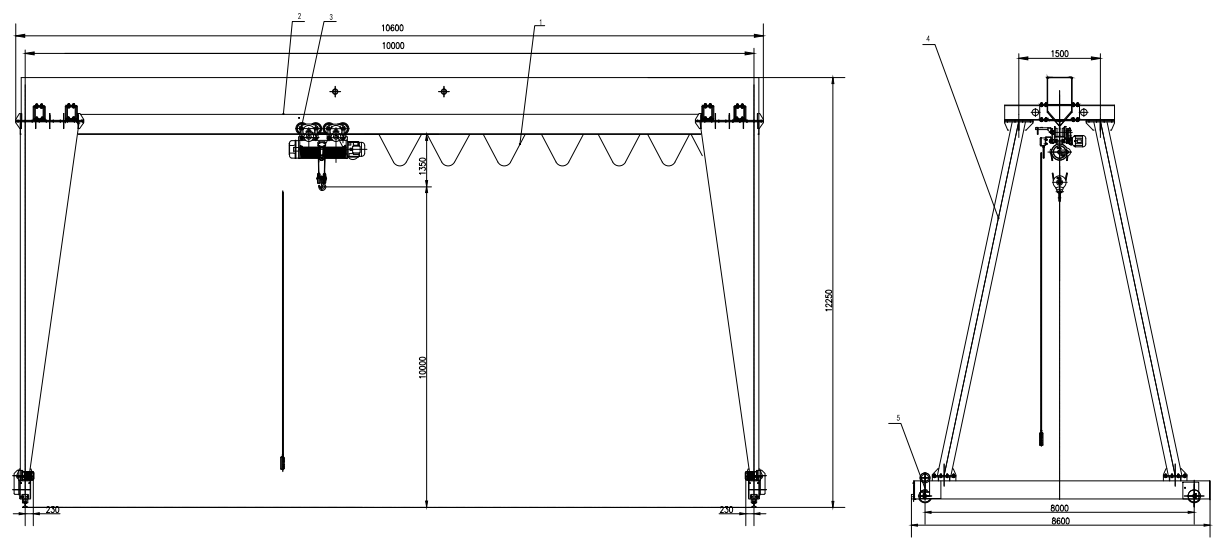

Technical Parameter--Single Girder Gantry Crane

5T Single Girder Gantry Crane


Single Girder Gantry Crane Price

Part Details--Single Girder Gantry Crane

Single Girder Gantry Crane Price

Main Beam

  • Material: Q235B, Q345B, etc.
  • Box type.
  • One-off forming U shaped groove.

Electric Hoist

  • The trolley is mounted on top-class sealed bass bearings.
  • Gear Box has specially treated gears for high wear resistance.
  • Geared shaft assembly is supported on ball or roller bearing.
  • All the hoists are tested on 125% thus assuring safe working load.

Buffer

  • Material: High quality polyurethane buffer.
  • Installed on the end of end carriage.
Support Leg
  • Made from structural sections.
  • Connected with support leg and main beam by bolt for easy transportation and installation.
Ground Beam
  • Made from structural sections.
  • Connected with support leg by bolt for easy transportation and installation.
  • Wheels are flanged with anti-friction bearings
  • Motors are soft-start model.

Hook Block

  • Material: Forged, Plain `C` type.
  • Tested on 150% of full load before assembly.
  • Sheaves are fully guarded with protective steel casting.
  • Pulley is thicken and dilated.
Package & Delivery--Single Girder Gantry Crane
Single Girder Gantry Crane Price


  • Main electric parts are packed by damp proof wooden case to protect from damage caused by humidity and corrosion.
  • Other parts are packed as standard or as your requirements.
  • All information written on the single girder overhead crane is to be both in English Language.
  • All pacakge are to have packing notes showing their contents in detail and all packages shall be marked with the name and address of the consignee and gross weight.
Infos Needed For Inquiry--Single Girder Gantry Crane

To provide suitable crane solution, pls kindly provide the following information:

1). Max lifting capacity: __t?

2). Span length (rail center to rail center):__m? Any cantilever required?

3). Lifting height (hook center to ground):__m?

4). Working condition: What product will be lifted? Indoor or Outdoor?

5). Crane traveling length?

6). Power supply: __V, __Hz,__3Ph
